Line 4 (Wuhan Metro)

Line 4
Line 4
	Wangjiawan Station
Overview
Other name(s)	Caidian line (蔡甸线) (Western extension)
Owner	Wuhan
Locale	Wuhan, Hubei
Termini	Bailin[1]; Wuhan Railway Station
Stations	37
Service
Type	Rapid transit
System	Wuhan Metro
Services	1
Operator(s)	Wuhan Metro Group Co., Ltd.
Rolling stock	CRRC Zhuzhou Locomotive Chinese Type B
Daily ridership	750,000 (2017 Daily)[2]
History
Opened	December 28, 2013[3]
Technical
Line length	49.693 km (30.88 mi)
Number of tracks	2
Character	Underground and elevated
Track gauge	1,435 mm (4 ft 8+1⁄2 in)
Route map
	Phase 1
	Phase 2

The Line 4 of Wuhan Metro (Chinese: 武汉地铁4号线) is the third line in Wuhan Metro system, and it will be the second metro line crossing the Yangtze river in Wuhan. It is colored grass-green, which is the identifying color of this line, which would appear on its trains, station signs, and the official subway map.

The whole construction was divided into two parts, being phase 1 and 2, which opened in 2013 and 2014, respectively. Phase 1, opened on December 28, 2013, runs through Wuchang in a northeast-southwest direction, connecting Wuhan Railway Station, Wuchang Railway Station and major commercial districts.[3] Phase 2 will run in an east-west direction, linking Hanyang and Wuchang, tunneling through the Yangtze river in the proximity of the first Yangtze river bridge and connecting with phase 1 at Wuchang railway station.[4]

The opening of phase 1 of Line 4 will form the skeleton of Wuhan's metro system. Right after its opening, the system (including Line 1, 2, and 4) will be able to accommodate millions of passengers a day, where a large proportion of them will be the cross-Yangtze passengers. But all stations on line 4 have been designed only to accommodate a six-car train (type B) in length and have no possibility to extend for future upgrading.

Overview

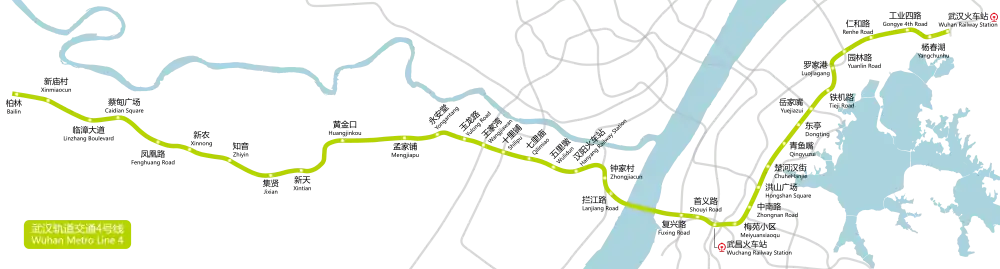

Map of Line 4

Tunnels under construction

History

Phase 1 opened on December 28, 2013.[5]
Phase 2 opened on December 28, 2014.[6]
Caidian line (Western extension) opened on 25 September 2019.[7]

Segment	Commencement	Length	Station(s)	Name
Wuchang Railway Station — Wuhan Railway Station	28 December 2013	15.429 km (9.59 mi)	15	Phase 1
Huangjinkou — Wuchang Railway Station	28 December 2014	17.974 km (11.17 mi)	13	Phase 2
Huangjinkou — Bailin[1]	25 September 2019	16.068 km (9.98 mi)[8]	9	Caidian line (Western extension)

Stations

Entrance of Chuhehanjie station.

Service routes		Station name		Connections	Distance km		Location
Service routes		English	Chinese	Connections	Distance km		Location

●		Bailin[1]	柏林		0.000	0.000	Caidian
●		Xinmiaocun	新庙村		1.417	1.417
●		Linzhang Boulevard	临嶂大道		2.081	3.498
●		Caidian Square	蔡甸广场		1.241	4.739
●		Fenghuang Road	凤凰路		2.148	6.887
●		Xinnong	新农		1.453	8.340
●		Zhiyin	知音		1.820	10.160
●		Jixian	集贤		2.011	12.171
●		Xintian	新天		1.367	13.538
●		Huangjinkou	黄金口		2.750	16.288	Hanyang
●		Mengjiapu	孟家铺		2.762	19.050
●		Yong'antang	永安堂		1.479	20.529
●	●	Yulong Road	玉龙路		1.243	21.772
●	●	Wangjiawan	王家湾	3	0.901	22.673
●	●	Shilipu	十里铺		0.950	23.623
●	●	Qilimiao	七里庙		1.204	24.827
●	●	Wulidun	五里墩		1.124	25.951
●	●	Hanyang Railway Station	汉阳火车站	HYN	1.012	26.963
●	●	Zhongjiacun	钟家村	6	1.574	28.537
●	●	Lanjiang Road	拦江路		0.834	29.371
●	●	Fuxing Road	复兴路	5	3.278	32.649	Wuchang
●	●	Shouyi Road	首义路		0.718	33.367
●	●	Wuchang Railway Station	武昌火车站	7 WXN WCN	0.897	34.264
●	●	Meiyuanxiaoqu	梅苑小区		0.900	35.164
●	●	Zhongnan Road	中南路	2	1.095	36.259
●	●	Hongshan Square	洪山广场	2	0.966	37.225
●	●	Chuhe Hanjie	楚河汉街		1.077	38.302
●	●	Qingyuzui	青鱼嘴		1.226	39.528
●	●	Dongting	东亭		1.048	40.576
●	●	Yuejiazui	岳家嘴	8	0.928	41.504	Wuchang / Hongshan
●	●	Tieji Road	铁机路		1.032	42.536	Hongshan
●	●	Luojiagang	罗家港		1.171	43.707
●	●	Yuanlin Road	园林路		1.036	44.743
●	●	Renhe Road	仁和路		1.333	46.076
●	●	Gongye 4th Road	工业四路		1.634	47.710
●	●	Yangchunhu	杨春湖		1.173	48.883
●	●	Wuhan Railway Station	武汉火车站	5 [lower-alpha 1] WS WG WHN	0.810	49.693

Out of system transfer.

Rolling stock

Line 4 train
Inside the train
Interior LCD

Type	Time of manufacturing	Sets	Assembly	Notes
Type B	2012–2013	15	Tc+M+M+M+M+Tc	Manufactured by Zhuzhou Electric Locomotive Co., Ltd.[9]
Type B	2014	24	Tc+M+M+M+M+Tc	[10]
Type B	2018	31	Tc+M+M+M+M+Tc	[11]

The rolling stock for Line 4 is a 6-car train, with 100 km/h (62 mph) of max speed, 80 km/h (50 mph) of operation max speed, and 36.6 km/h (22.7 mph) average speed. The collection shoe is on the lower part of the vehicle. The third rail is a mix of steel and aluminum. A full train provides 176 seats, and can carry 1276 passengers by Chinese regulation of 9 people per square meter.[9][12]
